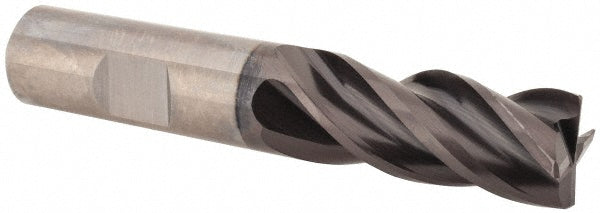

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9030800158700

Guhring

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9030800158700

MFR# 9030800158700Series 3080

$249.86List $314.88 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
Coatingnano-A

Description

The Guhring 9030800158700 is a 5/8 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 1-1/4 length of cut, 3-1/2 overall length. Series 3080.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnano-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36; 38
Length of cut in1-1/4
Length typeRegular
Material gradeProprietary
Maximum helix angle38
Mill diameter in5/8
Mill diameter toleranceh10
Minimum helix angle36
Number of flutes4
Overall length in3-1/2
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
