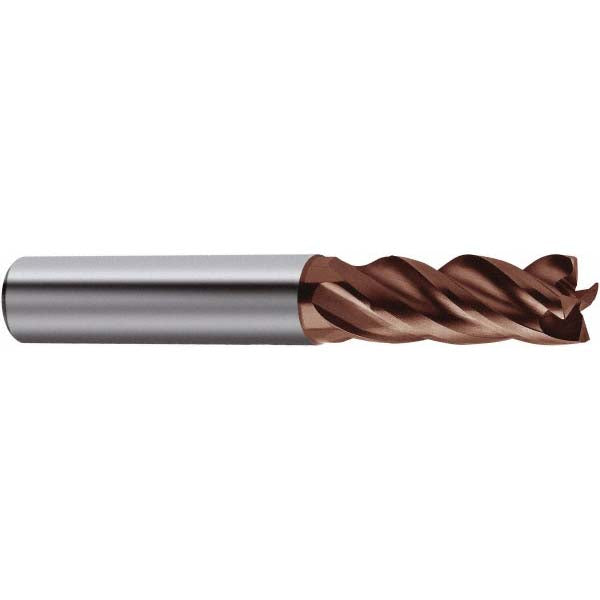

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9067570158700

Guhring

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Guhring 9067570158700

MFR# 9067570158700Series 6757

$259.57List $327.11 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlSiN

Description

The Guhring 9067570158700 is a 5/8 4-flute Solid Carbide (Ultra Fine Micrograin) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 6757.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0060
Chamfer width0.0060
ChipbreakerNo
Coating finishTiAlSiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleVariable
Length of cut in1-1/4
Length typeRegular
Manufacturers catalog number9067570158700
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter toleranceh10
Number of flutes4
Overall length in3-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1-1/4
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
