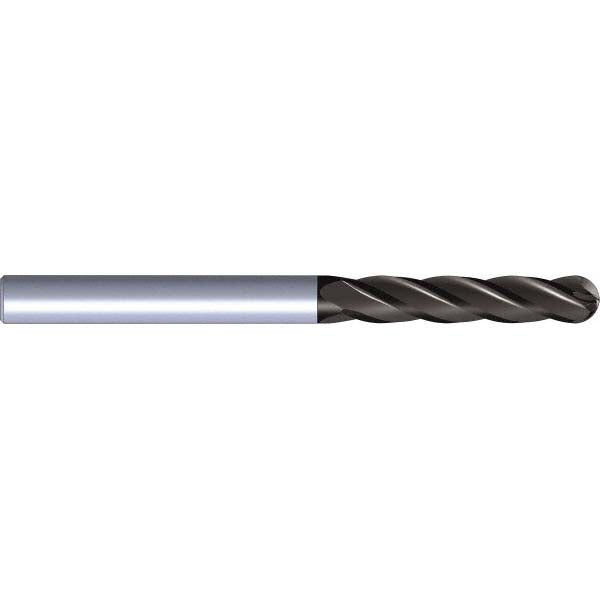

1/2in" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824537

Kennametal

1/2in" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824537

MFR# 5824537Cat# 4BN0500IX150ASeries GOmill 4BN

$212.45List $267.74 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5824537 is a 1/2in 4-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2in length of cut, 6in overall length. Series GOmill 4BN.

Specifications

Additional informationSolid Carbide End Mill With Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability For Long Tool Life And High Surface Quality. Eccentric Relief Eases Regrinding And Reduces Reconditioning Cost. Center Cutting For Plunging And Ram
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/2in
Length typeStandard
Manufacturers catalog number4BN0500IX150A
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes4
Overall length in6in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length1.5000
Shank diameter in1/2in
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
