Kennametal

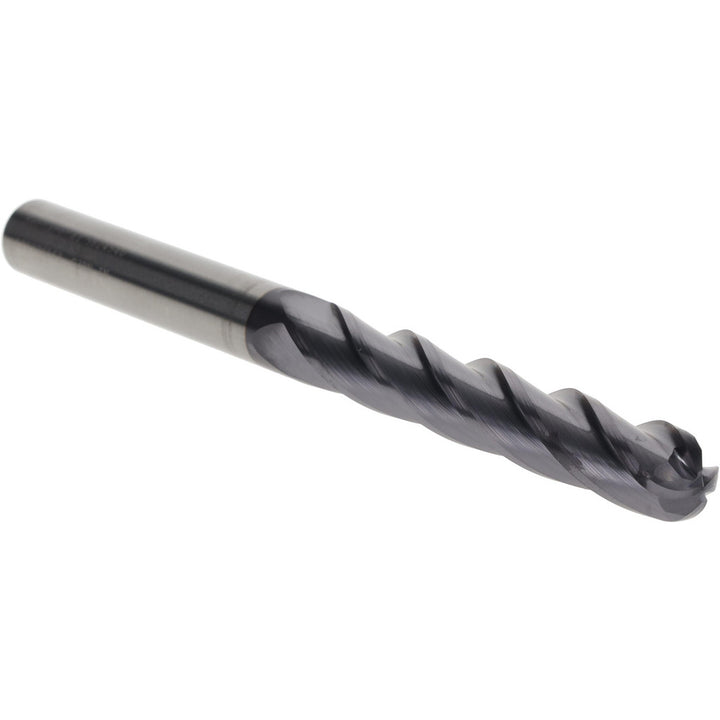

1/2" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824540

MFR# 5824540Cat# 4BN0500IX300ASeries GOmill 4BN

$179.96List $230.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Kennametal 5824540 is a 1/2 4-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3 length of cut, 6 overall length. Series GOmill 4BN.

Specifications

Additional informationSolid Carbide End Mill with Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability for Long Tool Life & High Surface Quality. Eccentric Relief Eases Regrinding & Reduces Reconditioning Cost. Center Cutting for Plunging & Ramping O

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3

Length typeLong

Manufacturers catalog number4BN0500IX300A

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.2500

Number of flutes4

Overall length in6

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length3.0000

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
