Helical Solutions

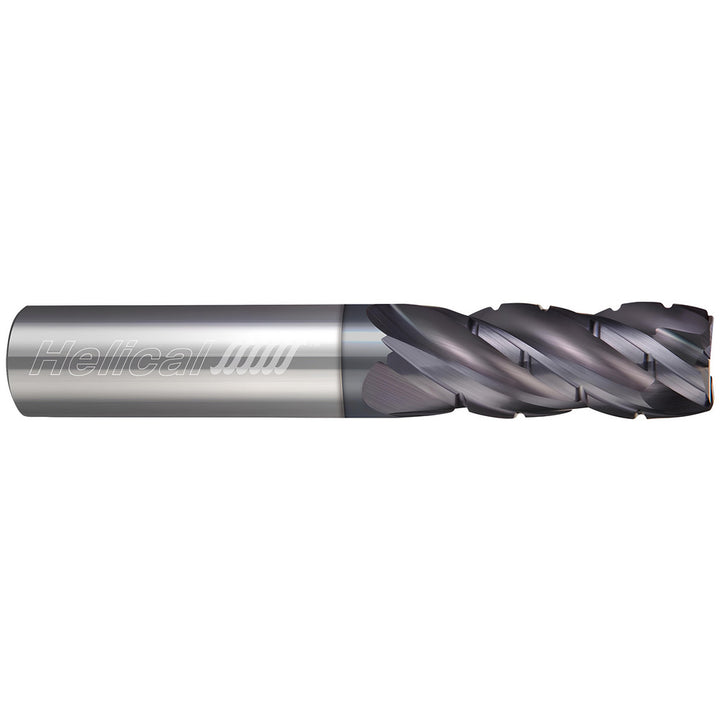

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 31512
MFR# 31512Series HSV-4
$116.46List $135.96
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingAPLUS
Description
The Helical Solutions 31512 is a 1/2in 4-flute Solid Carbide corner radius end mill with a APLUS finish for longer tool life. Suited for steel, cast iron. 1 length of cut, 3 overall length. Series HSV-4.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAPLUS
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHigh Precision Toolholders
Length of cut in1
Material applicationLow-Alloy Steel; Medium Alloy Steel; Tool Steel; Cast Iron
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in3
Overall length tolerance-0.0620/0.0620 in
PitchVariable
Primary workpiece materialSteel; Cast Iron
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexYes
