Seco

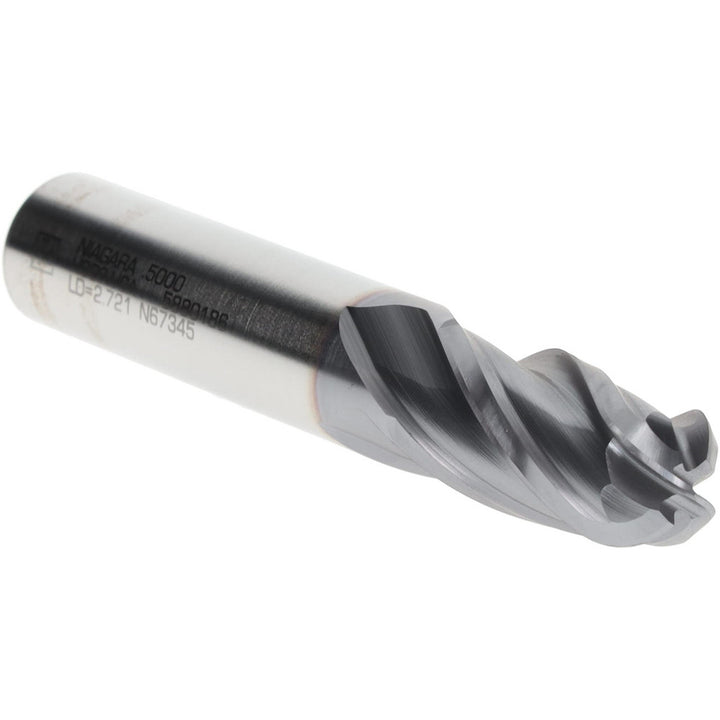

1/2" 4-Flute Cobalt Ball End Mill, TiCN - Seco 17012957

MFR# 17012957Cat# SPB540-0.500-D2-B.3-Z4Series SPB540

$52.15List $66.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Seco 17012957 is a 1/2 4-flute Cobalt ball end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1 length of cut, 3 overall length. Series SPB540.

Specifications

ChipbreakerNo

Coating finishTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1

Length typeShort

Manufacturers catalog numberSPB540-0.500-D2-B.3-Z4

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance+0.0010/-0.0000 in

Neck length0.0000

Nose radius0.2500

Number of flutes4

Overall length in3

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length1.0000

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0010

Variable helixNo

Variable indexNo
