Kennametal

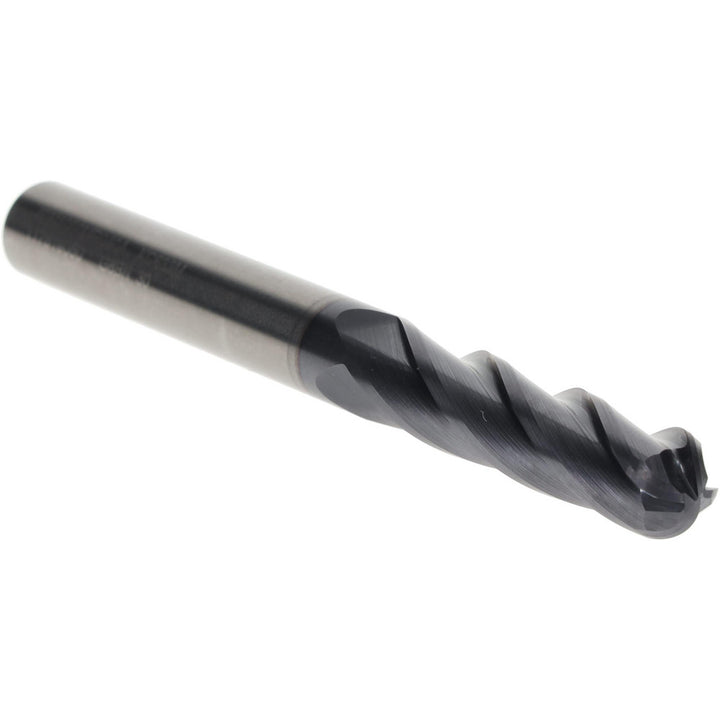

0.3937" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824956

MFR# 5824956Cat# 4BN1000MR040ASeries GOmill 4BN

$101.60List $130.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Kennametal 5824956 is a 0.3937 4-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. Series GOmill 4BN.

Specifications

Additional informationSolid Carbide End Mill with Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability for Long Tool Life & High Surface Quality. Eccentric Relief Eases Regrinding & Reduces Reconditioning Cost. Center Cutting for Plunging & Ramping O

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut (mm)40.00

Length typeStandard

Manufacturers catalog number4BN1000MR040A

Material removal typeRoughing & Finishing

Mill diameter0.3937

Mill diameter tolerance-0.025/-0.047 mm

Nose radius (mm)5.00

Number of flutes4

Overall length (mm)100.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length (mm)40.00

Shank diameter (mm)10.00

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
