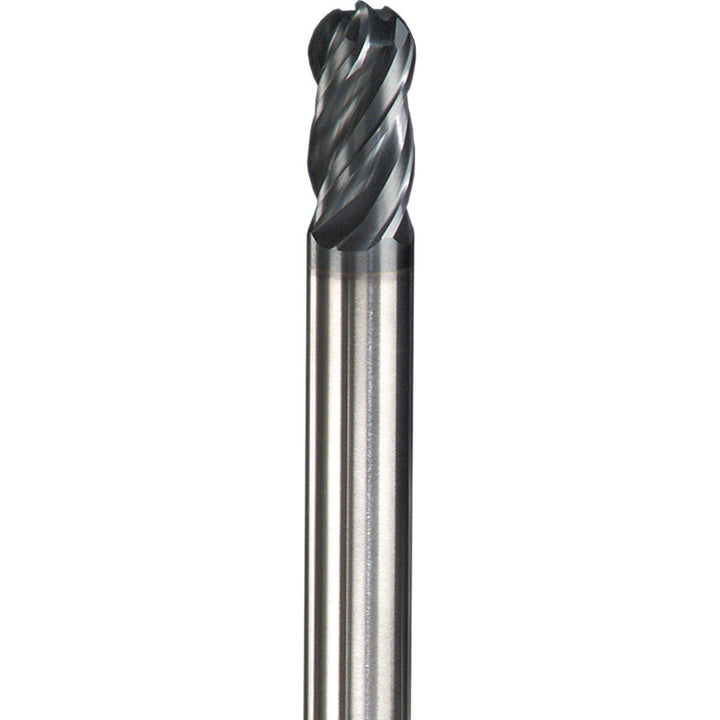

0.3937" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 46345

SGS

0.3937" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 46345

MFR# 46345Series Z1MB

$62.00List $79.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 46345 is a 0.3937 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Series Z1MB.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleVariable
Length typeRegular
Material gradeMicrograin
Material removal typeFinishing
Mill diameter0.3937
Mill diameter tolerance+0.000 to -0.040 mm
Number of flutes4
Overall length (mm)72.00
Shank diameter (mm)10.00
Shank diameter tolerance0.000 to 0.009 mm
Single or double endSingle
Variable helixYes
Variable indexYes
