Kennametal

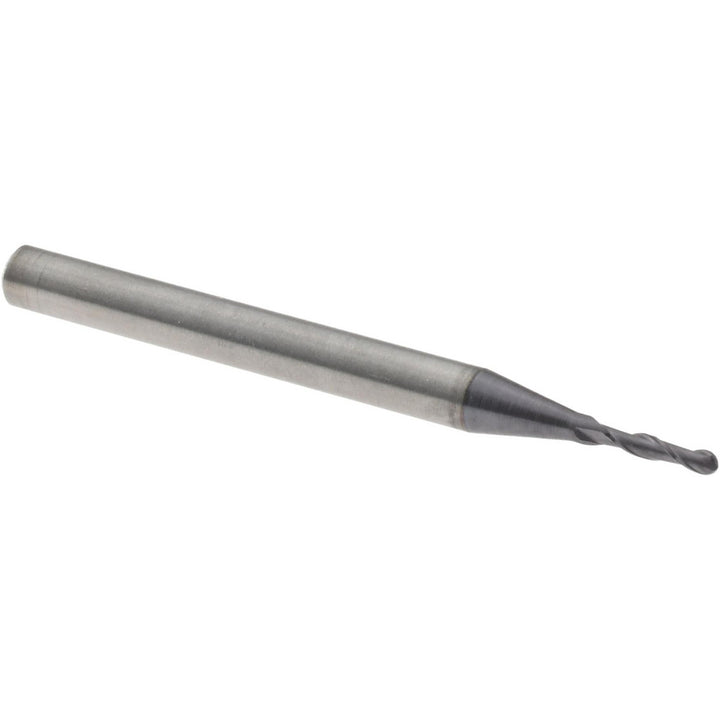

3/64" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5876723
MFR# 5876723Cat# 2BN0047IR018ASeries GOmill 2BN
$28.66List $36.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/64
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5876723 is a 3/64 2-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/16 length of cut, 1-1/2 overall length. Series GOmill 2BN.
Specifications
Additional informationSolid Carbide End Mill with Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability for Long Tool Life & High Surface Quality. Eccentric Relief Eases Regrinding & Reduces Reconditioning Cost. Center Cutting for Plunging & Ramping O
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in3/16
Length typeStandard
Manufacturers catalog number2BN0047IR018A
Material removal typeRoughing & Finishing
Mill diameter in3/64
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0235
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.1875
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00024 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
