3/64" 2-Flute Solid Carbide Ball End Mill - SGS 00853

SGS

3/64" 2-Flute Solid Carbide Ball End Mill - SGS 00853

MFR# 00853Series 1625

$14.16List $18.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

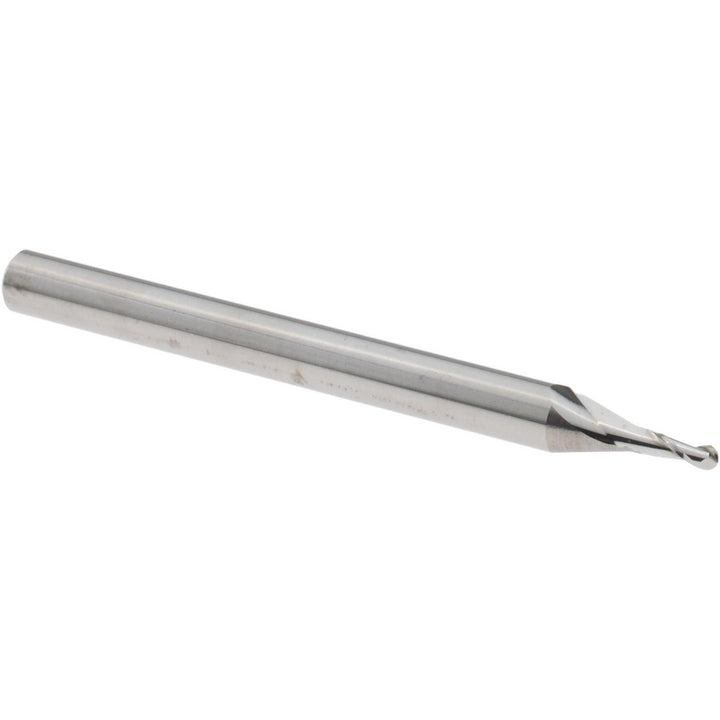

The SGS 00853 is a 3/64 2-flute Solid Carbide (Micrograin) ball end mill. 9/64 length of cut, 1-1/2 overall length. Series 1625.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/64
Length typeStandard
Material gradeMicrograin
Mill diameter in3/64
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
