Kennametal

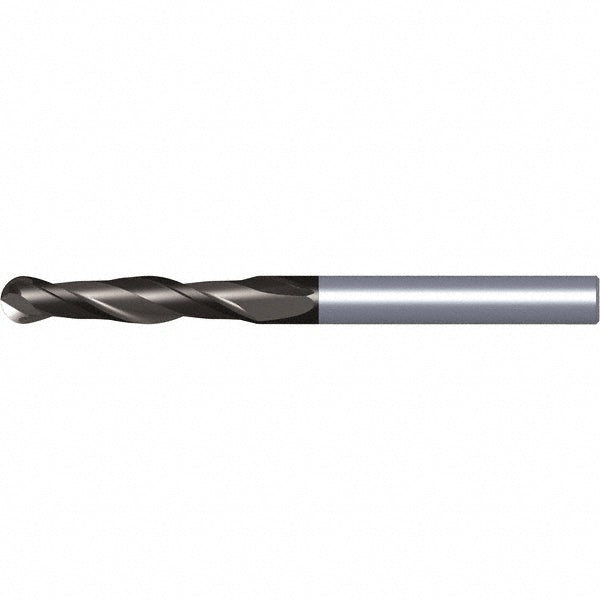

1/4in" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5876751
MFR# 5876751Cat# 2BN0250IL150ASeries GOmill 2BN
$49.66List $63.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5876751 is a 1/4in 2-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2in length of cut, 4in overall length. Series GOmill 2BN.
Specifications
Additional informationSolid Carbide End Mill With Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability For Long Tool Life And High Surface Quality. Eccentric Relief Eases Regrinding And Reduces Reconditioning Cost. Center Cutting For Plunging And Ram
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/2in
Length typeLong
Manufacturers catalog number2BN0250IL150A
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1250
Number of flutes2
Overall length in4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length1.5000
Shank diameter in1/4in
Shank diameter tolerance+0.00000/-0.00031 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
