Kennametal

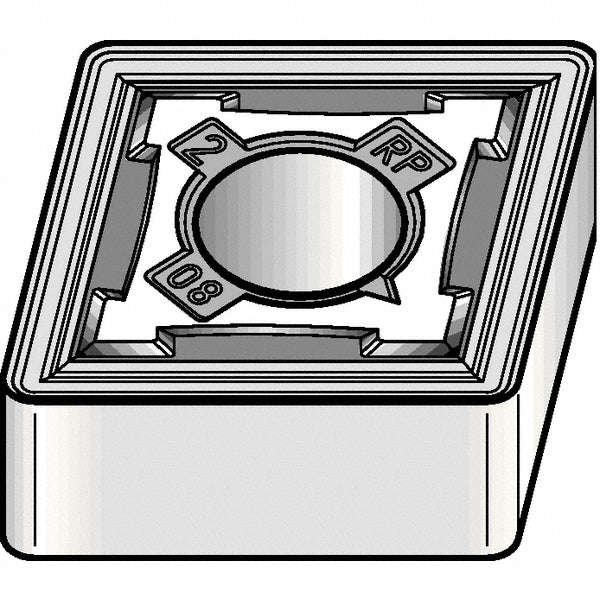

CNMG160612RP Carbide Insert, Grade KCM35B, TiN - Kennametal 5882892
MFR# 5882892ISO/ANSI# CNMG160612Series KENLOC
$41.01List $50.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM35B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5882892 is a CNMG160612RP carbide indexable insert, grade KCM35B, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543RP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612RP
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog number5882892
Manufacturer gradeKCM35B
Material gradeC1; C2
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
