Kennametal

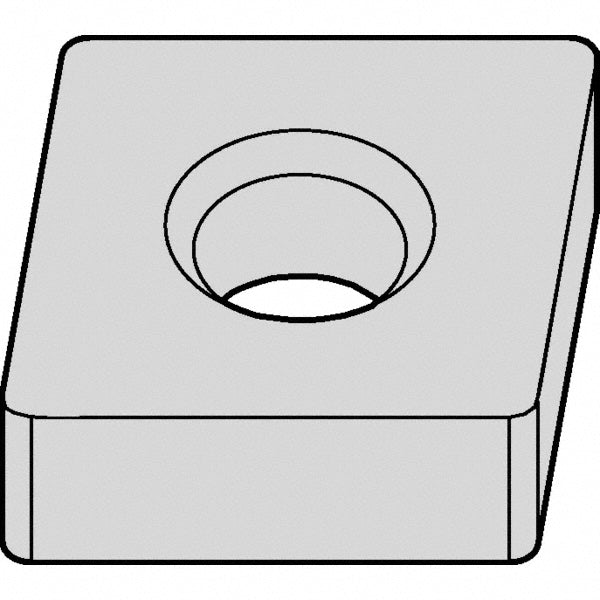

CNMA120404 Carbide Insert, Grade KCK05B, TiCN - Kennametal 5883000
MFR# 5883000ISO/ANSI# CNMA431Series KENLOC
$29.60List $35.51
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCK05B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5883000 is a CNMA120404 carbide indexable insert, grade KCK05B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMA431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120404
Length range0.5000 - 0.6000
Manufacturers catalog number5883000
Manufacturer gradeKCK05B
Material gradeC3; C4
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
