Kennametal

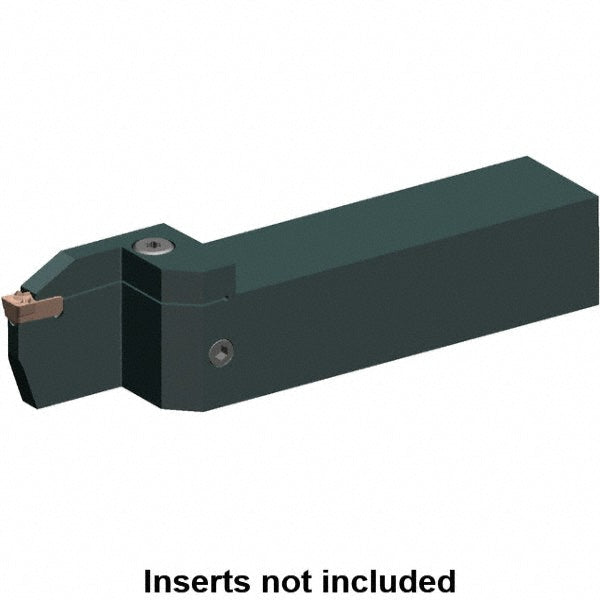

Indexable Cut-Off - Kennametal 5939456
MFR# 5939456Series Beyond Evolution
$246.84List $301.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5939456 indexable cut-off. Series Beyond Evolution.
Specifications
Blade width0.1360
Compatible insert size codeEG0400M04P04
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderRight
Head height1.3350
Head length1.4570
Insert holding methodClamp
Insert seat size4
Maximum depth of cut0.6300
Maximum insert width0.1360
Maximum workpiece diameter1.2600
Overall length in6
Shank height in1
Shank length4.5430
Shank width diameter in1
Toolholder styleEVSM
