Kennametal

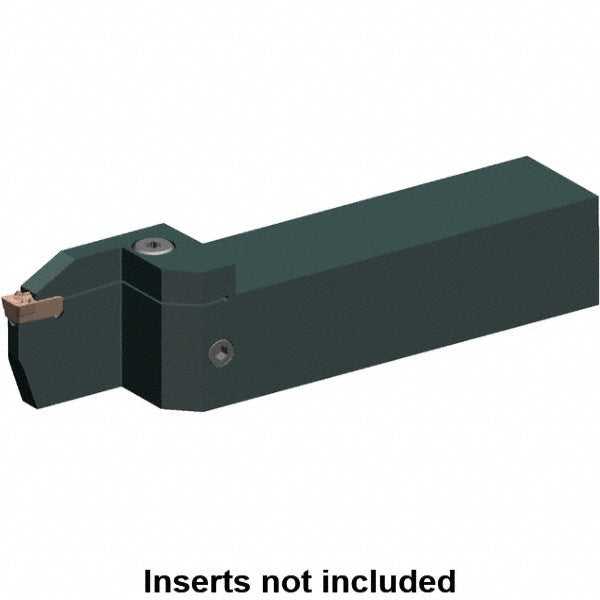

Indexable Cut-Off - Kennametal 5939471
MFR# 5939471Series Beyond Evolution
$246.84List $301.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5939471 indexable cut-off. Series Beyond Evolution.
Specifications
Blade width0.1360
Compatible insert size codeEG0400M04P04
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderLeft
Head height1.3540
Head length1.8500
Insert holding methodClamp
Insert seat size4
Maximum depth of cut1.0240
Maximum insert width0.1360
Maximum workpiece diameter2.0480
Overall length in6
Shank height in1
Shank length4.1500
Shank width diameter in1
Toolholder styleEVSM
