Kennametal

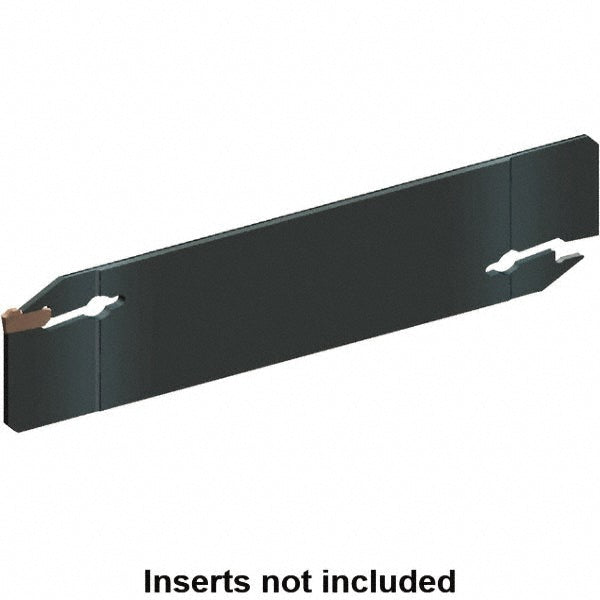

Indexable Cut-Off - Kennametal 5941706
MFR# 5941706Series Beyond Evolution
$129.13List $157.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5941706 indexable cut-off. Series Beyond Evolution.
Specifications
Blade height0.6080
Blade overall length3.5590
Blade styleEVBS
Blade width0.0550
Cutting directionNeutral
Cutting height0.6080
End typeDouble
Insert holding methodClamp
Insert seat size1B
Insert styleEG0140M1BP02
Insert width0.0550
Insert width (mm)1.40
Maximum depth of cut0.5510
Minimum insert width0.0550
