Kennametal

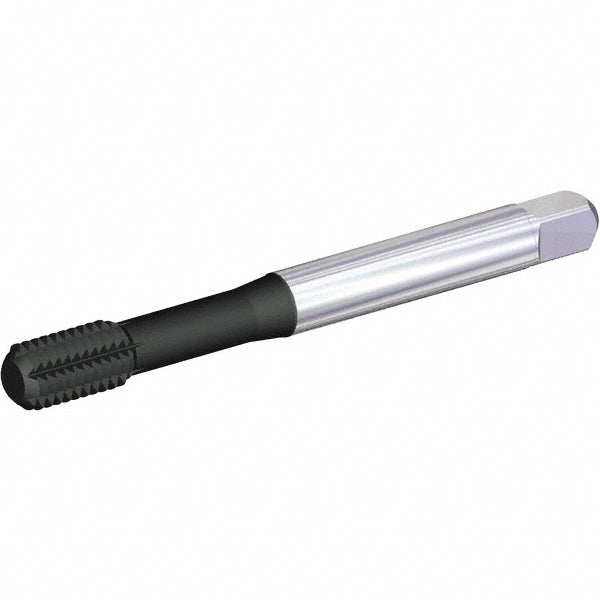

1/2-13 UNC High-Speed Steel-E-PM Tap, AlCrTiN - Kennametal 5945366
MFR# 5945366
$175.07List $224.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingAlCrTiN
Description
The Kennametal 5945366 is a 1/2-13 UNC High-Speed Steel-E-PM tap with a AlCrTiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Coating finishAlCrTiN
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material application codeP; M
Material gradeKSP27
Oil grooves6
Overall length4.3307
Shank diameter0.3670
Square size0.2750
Tapping depth1.8504
Thread directionRight Hand
Thread length0.7874
Thread limitH5
Thread size in1/2-13
Thread standardUNC
Trade nameBeyond
