Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5955510
MFR# 5955510Series NGD
$21.40List $26.12
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

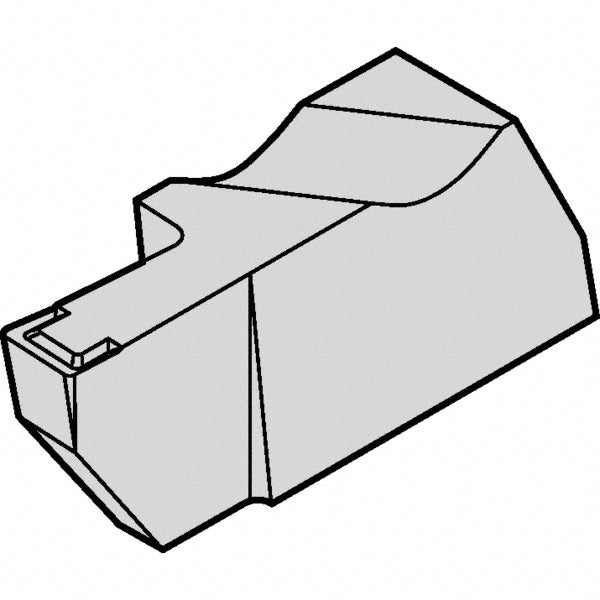

The Kennametal 5955510 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width (mm)2.00
External relief angle3
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNGD
Insert thickness0.2190
Internal relief angle3
Manufacturer gradeKCU25
Maximum depth of cut0.2000
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Overall width0.151
Rake angle3
