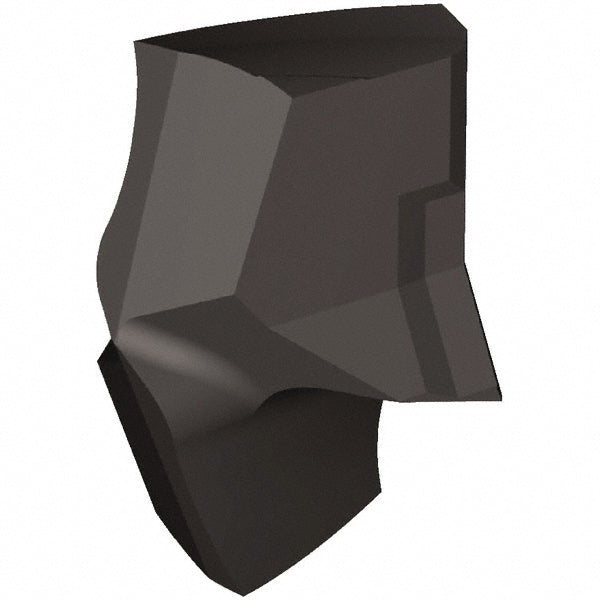

Carbide Insert, Grade KCMS35, TiAlN - Kennametal 5964129

Kennametal

Carbide Insert, Grade KCMS35, TiAlN - Kennametal 5964129

MFR# 5964129Series KSEM

$191.12List $245.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS35
CoatingTiAlN

Description

The Kennametal 5964129 is a carbide indexable insert, grade KCMS35, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7587
DrillingInclinedExit
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.3794
Height (mm)13.00
Included angle degree140
Insert geometrySPL
Insert holding methodClamp
Insert seat size2
Iso numberKSEM0759SPL
Manufacturer gradeKCMS35
Material gradeFine Grain
Number of flutes2
Overall length projection0.5064
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
