Kennametal
Carbide Insert, Grade KCP10B, TiOCN - Kennametal 5967845
MFR# 5967845Series Top Notch
$35.79List $43.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP10B
MaterialCarbide
CoatingTiOCN
Description

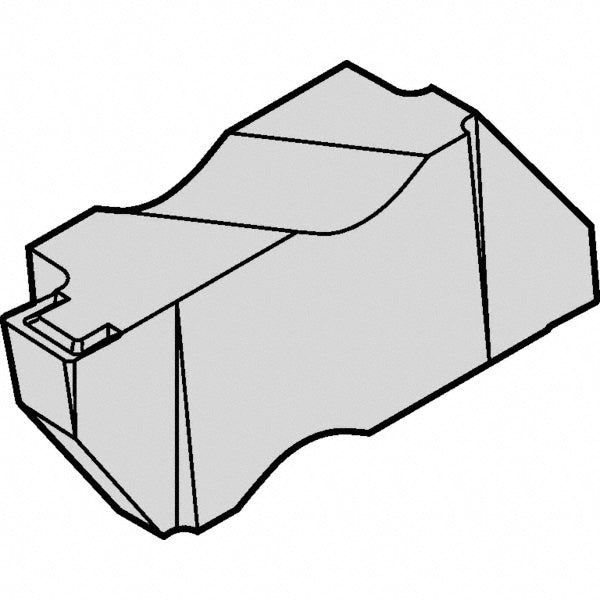

The Kennametal 5967845 is a carbide indexable insert, grade KCP10B, TiOCN coated.
Specifications
Chip breakerK
Coating finishTiOCN
Coating processCVD
Corner radius (mm)0.19
Cutting height in11/32
Cutting width in1/8
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNG
Insert thickness8.73
Manufacturer gradeKCP10B
Maximum depth of cut (mm)3.80
Maximum depth of cut range (mm)3.00 to 4.00
Measurement typeMetric
Multi use toolYes
Overall width (mm)4.98
Rake angle3
