Kennametal

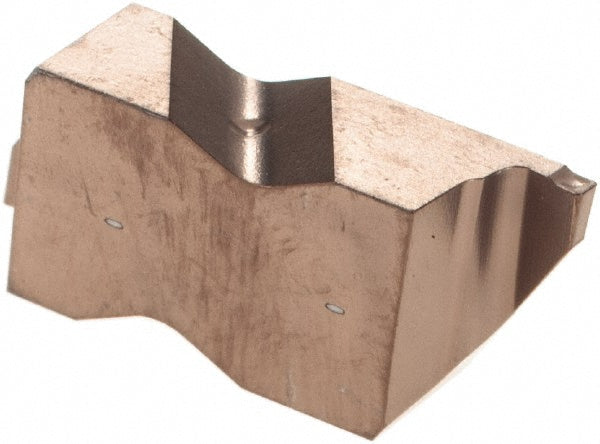

Carbide Insert, Grade KCP25B, TiOCN - Kennametal 5968042
MFR# 5968042Series Top Notch
$42.25List $50.67
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP25B
MaterialCarbide
CoatingTiOCN
Description
The Kennametal 5968042 is a carbide indexable insert, grade KCP25B, TiOCN coated.
Specifications
Chip breakerK
Coating finishTiOCN
Coating processCVD
Corner radius0.0075
Cutting height0.3441
Cutting width0.0394
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert styleNG
Insert thickness0.3441
Lead angle1
Manufacturer gradeKCP25B
Maximum depth of cut0.0752
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall width0.196
RakePositive
Rake angle3
