Kennametal
Carbide Insert, Grade KCP25B, TiOCN - Kennametal 5968082
MFR# 5968082Series Top Notch
$48.87List $59.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP25B
MaterialCarbide
CoatingTiOCN
Description

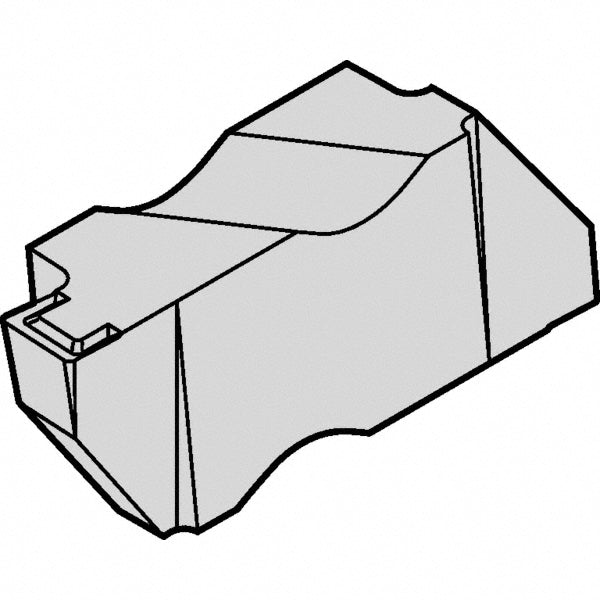

The Kennametal 5968082 is a carbide indexable insert, grade KCP25B, TiOCN coated.
Specifications
Chip breakerK
Coating finishTiOCN
Coating processCVD
Corner radius0.0075
Cutting height0.4530
Cutting width0.1181
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4
Insert styleNG
Insert thickness0.4530
Lead angle1
Manufacturer gradeKCP25B
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall width0.256
RakePositive
Rake angle3
