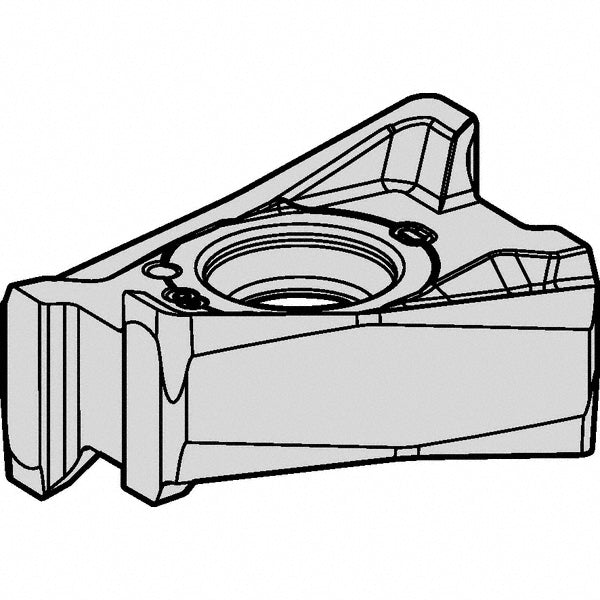

LNGU15T612SRGEM Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5976671
MFR# 5976671ISO/ANSI# LNGU15T612SRGEMCat# LNGU15T612SRGEMSeries LNGU
$42.61List $52.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5976671 is a LNGU15T612SRGEM solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU543SRGEM
Chip breakerGEM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code543
Insert styleLNGU
Iso codeLNGU15T612SRGEM
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T612SRGEM
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3940
