Description

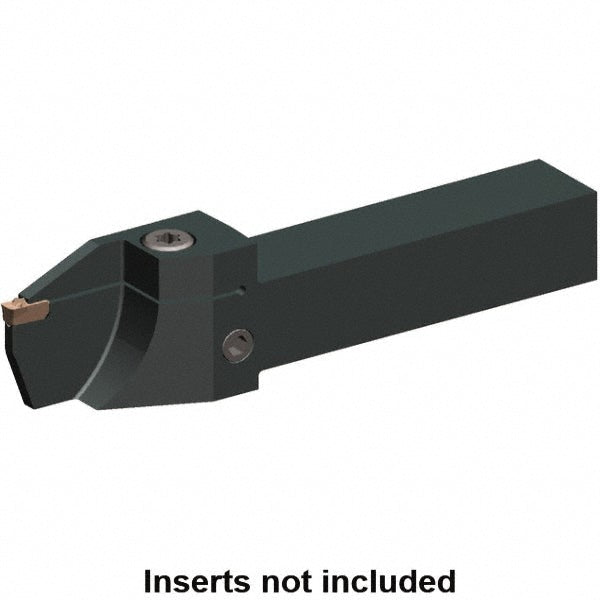

The Kennametal 5980816 indexable grooving. Series Beyond Evolution.
Specifications
Back of bar to cutting edge4.5000
Complete insert compatibilityEG0300M03P02
Coolant throughYes
Hand of holderRight Hand
Head height0.9200
Head length1.4170
Insert compatibilityEG0300M03P02
Insert holding methodClamp
Insert seat size3.0
Internal or externalExternal
Maximum depth of cut0.6300
Maximum groove width0.1180
Minimum groove width0.1180
Mount size1010
Overall length (mm)114.30
Shank height in5/8
Shank length3.0830
Shank width diameter in5/8
Toolholder styleEVSC-T
