Kennametal

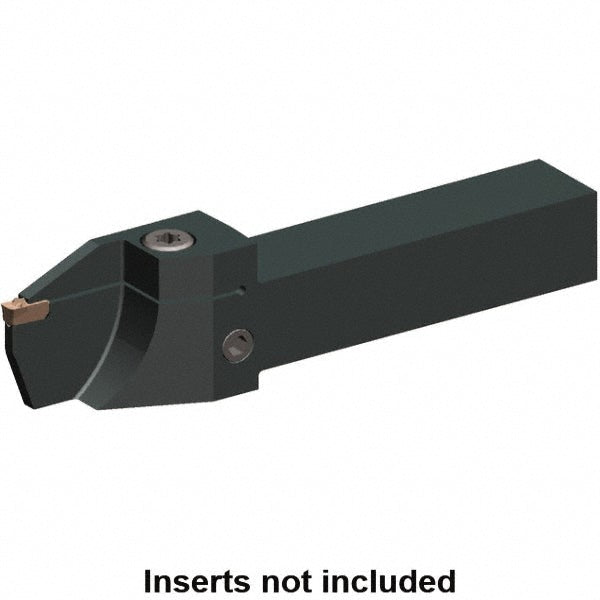

Indexable Grooving - Kennametal 5980912
MFR# 5980912Series Beyond Evolution
$208.73List $254.79
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5980912 indexable grooving. Series Beyond Evolution.
Specifications
Back of bar to cutting edge4.5000
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderRight Hand
Head height1.2620
Head length1.8500
Insert compatibilityEG0400M04P04
Insert holding methodClamp
Insert seat size4.0
Internal or externalExternal
Maximum depth of cut1.0240
Maximum groove width0.1580
Minimum groove width0.1580
Mount size1212
Overall length (mm)114.30
Shank height in3/4
Shank length2.6500
Shank width diameter in3/4
Toolholder styleEVSC-T
