Kennametal
Indexable Grooving - Kennametal 5980918
MFR# 5980918Series Beyond Evolution
$230.03List $280.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

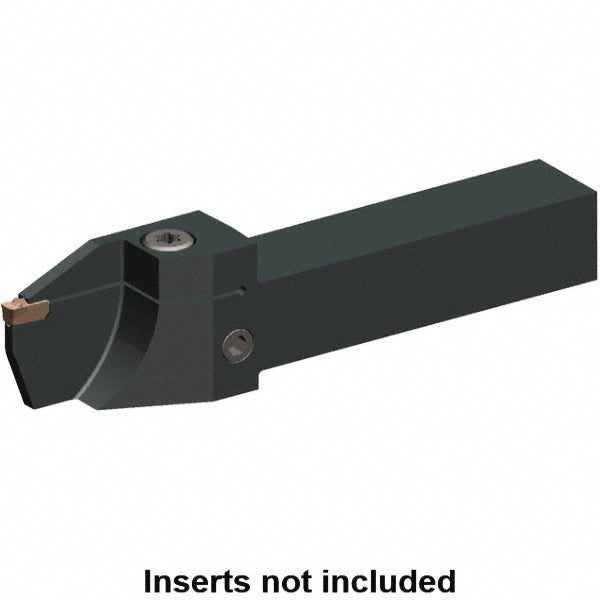

The Kennametal 5980918 indexable grooving. Series Beyond Evolution.
Specifications
Back of bar to cutting edge6.0000
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderRight Hand
Head height1.5120
Head length2.0870
Insert compatibilityEG0400M04P04
Insert holding methodClamp
Insert seat size4.0
Internal or externalExternal
Maximum depth of cut1.2600
Maximum groove width0.1580
Minimum groove width0.1580
Mount size1616
Overall length (mm)152.40
Shank height in1
Shank length3.9130
Shank width diameter in1
Toolholder styleEVSC-T
