Kennametal

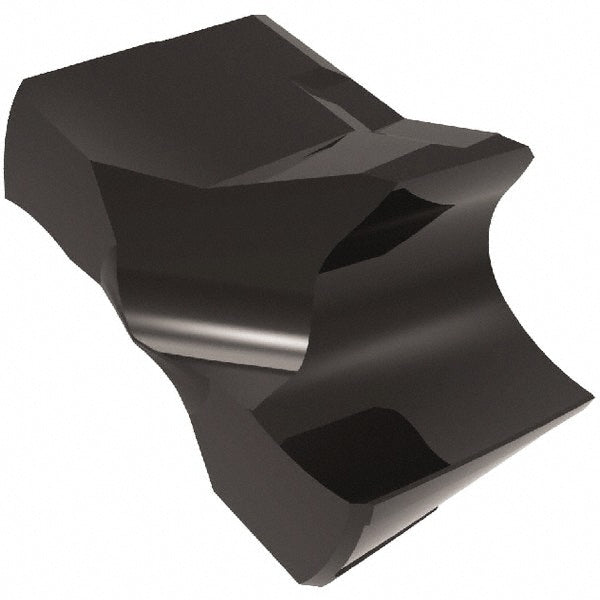

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981588
MFR# 5981588Series KSEM
$268.50List $338.37
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5981588 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsDrilling:FlatBottom; CounterBoring
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in63/64
DrillingCross-HoleDrilling
Drill point angle140
Flute length (mm)12.00
Flute typeStraight
Functional length0.4922
Height in17/32
Included angle degree140
Insert geometryFEG
Insert holding methodClamp
Insert seat size5
Iso numberKSEM2500FEGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5312
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeStraight
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
