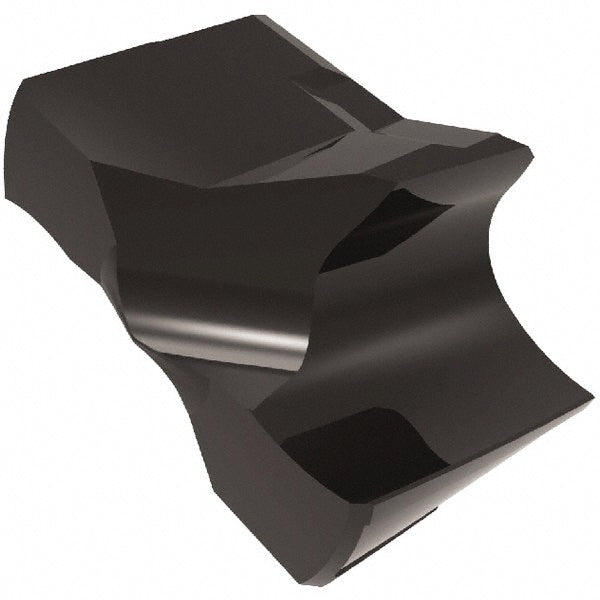

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981594
MFR# 5981594Series KSEM
$191.93List $241.87
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5981594 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsDrilling:FlatBottom; CounterBoring
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0630
DrillingCross-HoleDrilling
Drill point angle140
Flute length (mm)13.00
Flute typeStraight
Functional length0.5315
Height (mm)15.00
Included angle degree140
Insert geometryFEG
Insert holding methodClamp
Insert seat size6
Iso numberKSEM2700FEGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5745
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeStraight
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
