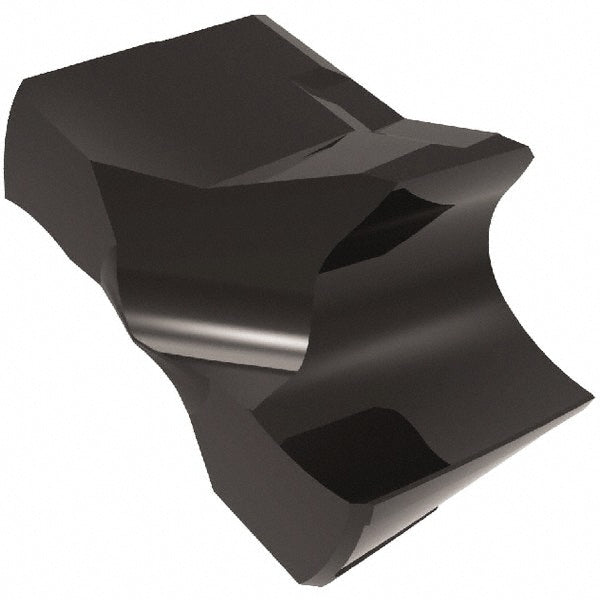

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981600

Kennametal

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981600

MFR# 5981600Series KSEM

$220.21List $282.02 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN

Description

The Kennametal 5981600 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling:FlatBottom; CounterBoring
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.2205
DrillingCross-HoleDrilling
Drill point angle140
Flute length (mm)15.00
Flute typeStraight
Functional length0.6100
Height (mm)17.00
Included angle degree140
Insert geometryFEG
Insert holding methodClamp
Insert seat size8
Iso numberKSEM3100FEGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.6570
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeStraight
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
