Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5988780
MFR# 5988780Series Beyond Evolution
$23.37List $28.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

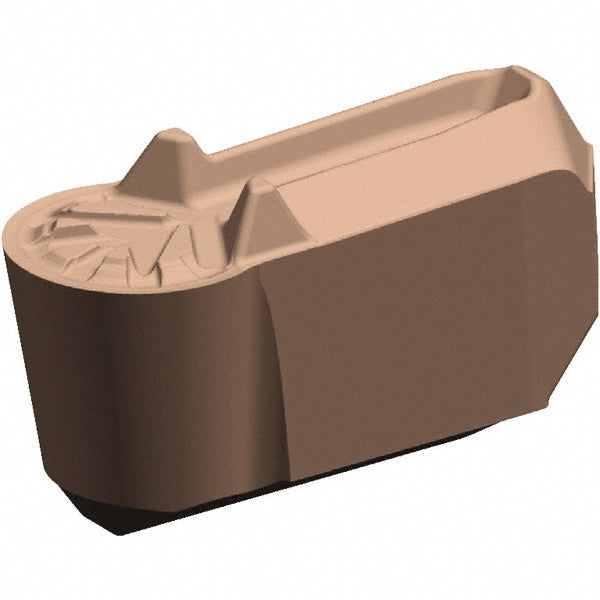

The Kennametal 5988780 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutting height0.1580
Cutting width0.1180
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size3
Insert styleER-P
Insert thickness0.1580
Manufacturer gradeKCU25
Maximum depth of cut0.0850
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.376
Overall width0.118
RakePositive
Rake angle14
