Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5988781
MFR# 5988781Series Beyond Evolution
$23.73List $28.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

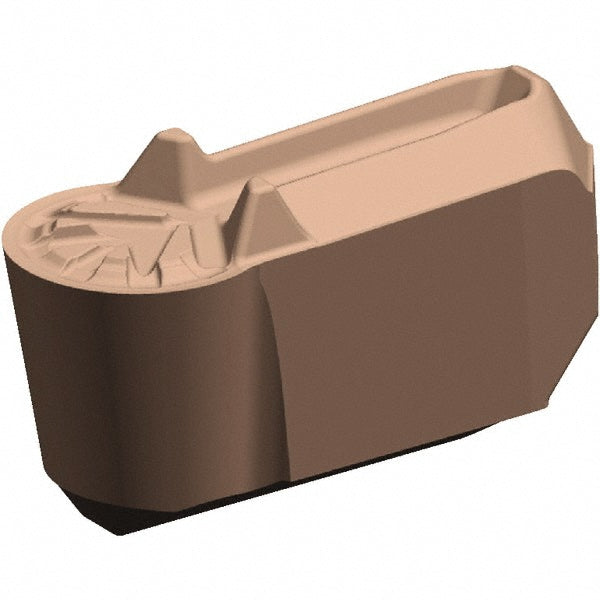

The Kennametal 5988781 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0790
Cutting height0.1740
Cutting width0.1570
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size4
Insert styleER-P
Insert thickness0.1740
Manufacturer gradeKCU25
Maximum depth of cut0.1030
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.399
Overall width0.157
RakePositive
Rake angle10
