Kennametal

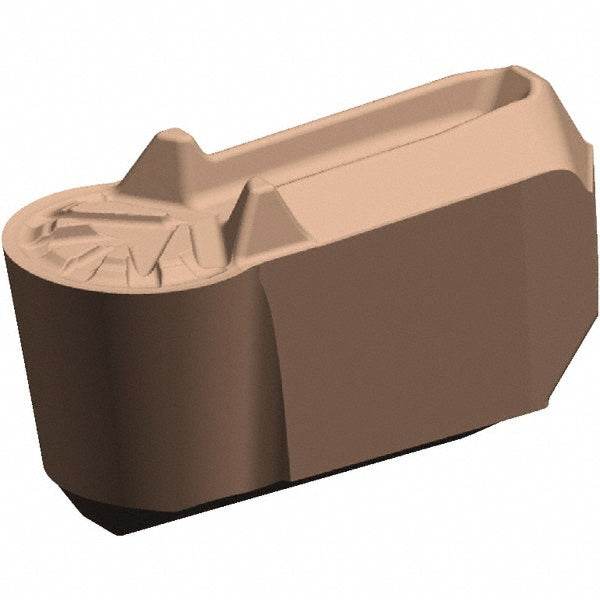

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5988815
MFR# 5988815Series Beyond Evolution
$35.19List $42.21
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5988815 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius in1/8
Cutting height0.2010
Cutting width0.2500
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleER-P
Insert thickness0.2010
Manufacturer gradeKCU25
Maximum depth of cut0.1510
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall length0.572
Overall width0.25
RakePositive
Rake angle10
