Kennametal

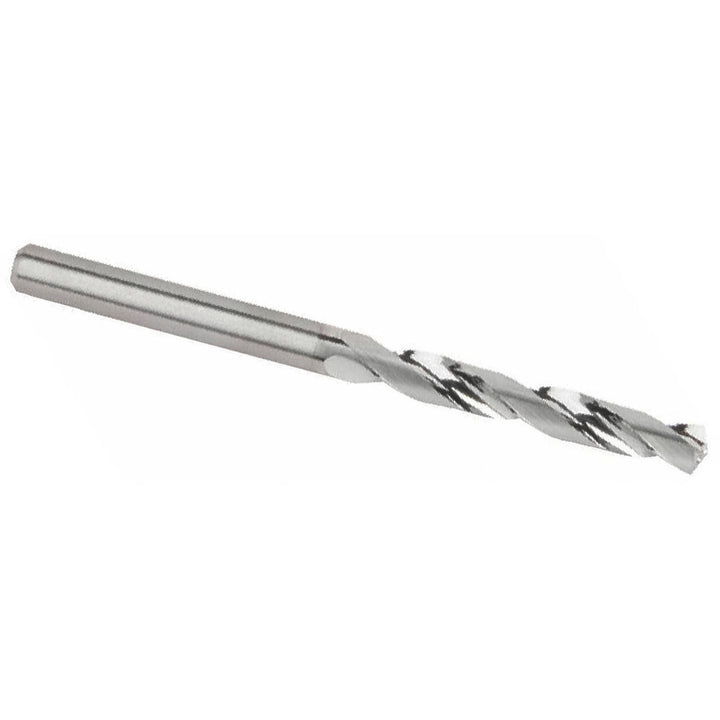

9/64" Solid Carbide Drill Bit, 135° point - Kennametal 5990789
MFR# 5990789
$160.92List $206.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
Description
The Kennametal 5990789 is a 9/64" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Drill point length (mm)0.66
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth (mm)23.00
Number of flutes2
Overall length2.5984
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)6
Shank length (mm)36
Shank type3-Flat
