Kennametal

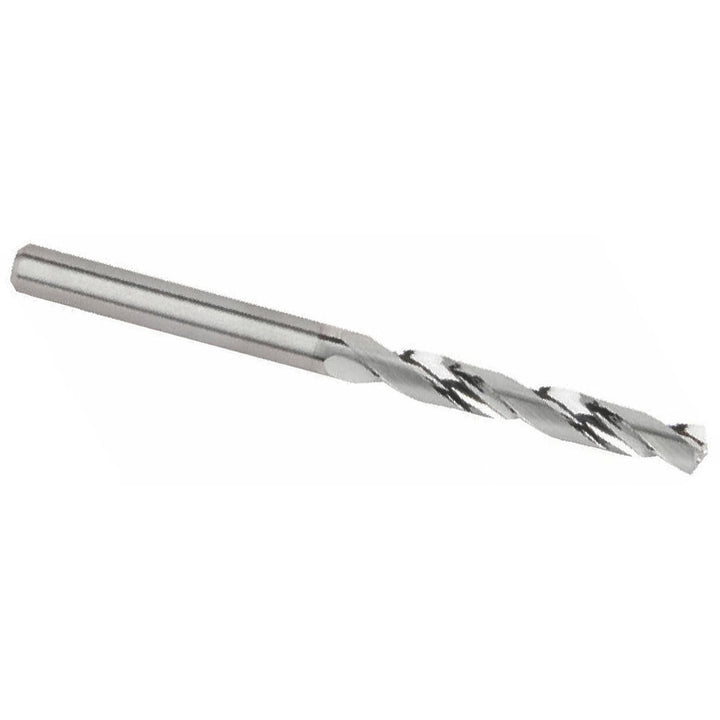

#21 Solid Carbide Drill Bit, 135° point - Kennametal 5990913
MFR# 5990913
$189.97List $239.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5990913 is a #21 Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.1590
Drill bit size range0.1500 - 0.2000
Drill bit size wire#21
Drill point angle degrees135
Drill point length (mm)0.75
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length2.9134
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)6
Shank length (mm)36
Shank type3-Flat
