Kennametal

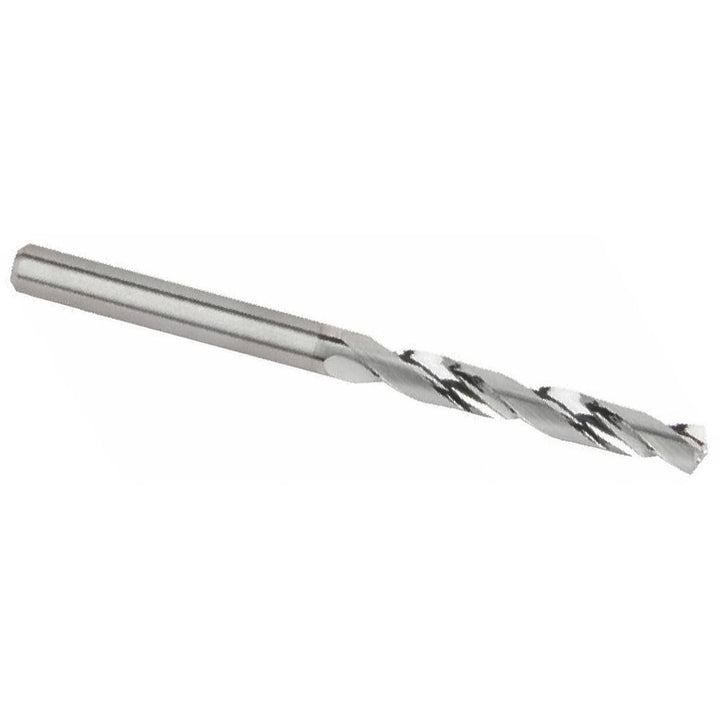

1/4" Solid Carbide Drill Bit, 135° point - Kennametal 5990936
MFR# 5990936
$211.99List $271.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Kennametal 5990936 is a 1/4" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0008 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length (mm)1.17
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length3.5827
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)8
Shank length (mm)36
Shank type3-Flat
