Kennametal

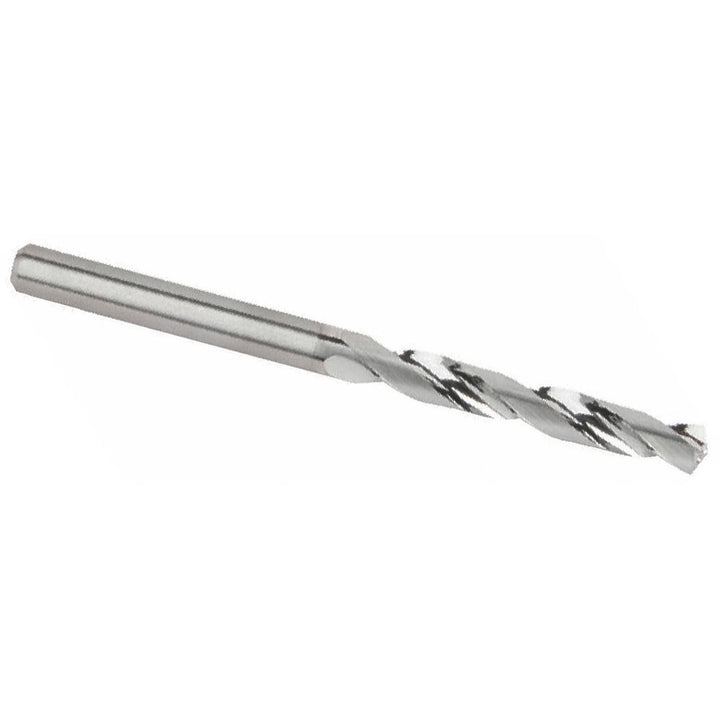

Letter F Solid Carbide Drill Bit, 135° point - Kennametal 5990937
MFR# 5990937
$211.99List $271.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5990937 is a Letter F Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0008 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length (mm)1.21
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length3.5827
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)8
Shank length (mm)36
Shank type3-Flat
