Kennametal

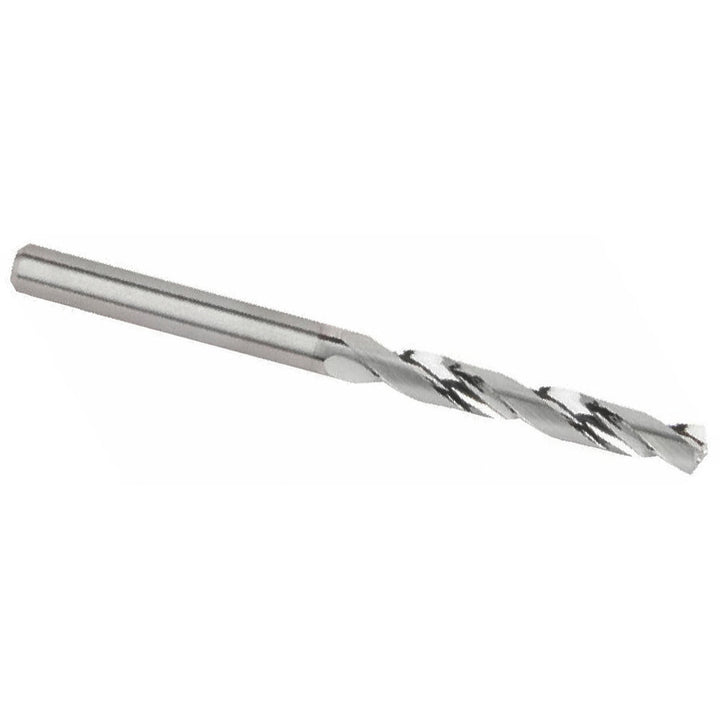

0.4016" Solid Carbide Drill Bit, 135° point - Kennametal 5990956
MFR# 5990956
$405.05List $510.47
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5990956 is a 0.4016" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0010 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.4016
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length (mm)1.88
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Maximum drilling depth (mm)56.00
Number of flutes2
Overall length4.6457
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)12
Shank length (mm)45
Shank type3-Flat
