Kennametal

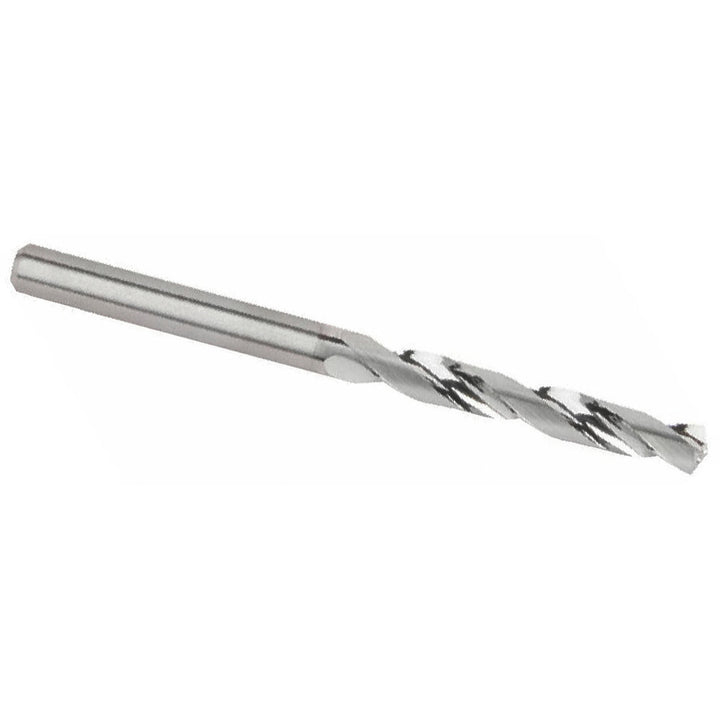

0.5157" Solid Carbide Drill Bit, 135° point - Kennametal 5990985
MFR# 5990985
$526.96List $664.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5990985 is a 0.5157" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0010 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.5157
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length (mm)2.42
Flute by diameter ratio5xD
Flute length3.0315
Flute typeRegular Spiral
Maximum drilling depth (mm)60.00
Number of flutes2
Overall length4.8819
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)14
Shank length (mm)45
Shank type3-Flat
