Kennametal

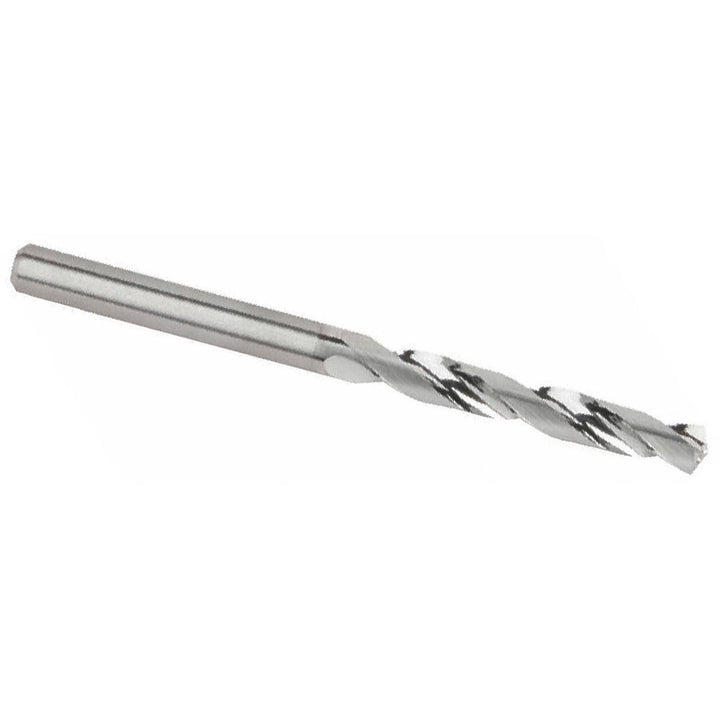

5/8" Solid Carbide Drill Bit, 135° point - Kennametal 5990997
MFR# 5990997
$577.18List $740.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
Description
The Kennametal 5990997 is a 5/8" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0010 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length (mm)2.93
Flute by diameter ratio5xD
Flute length3.2677
Flute typeRegular Spiral
Maximum drilling depth (mm)63.00
Number of flutes2
Overall length5.2362
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter (mm)16
Shank length (mm)48
Shank type3-Flat
