Kennametal

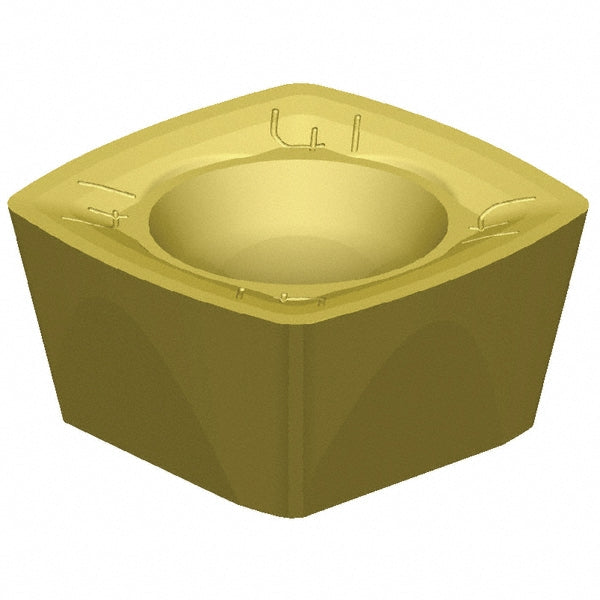

XDPT090408ERD41 Solid Carbide Insert, Grade X500, TiN - Kennametal 6010729
MFR# 6010729ISO/ANSI# XDPT090408ERD41Cat# XDPT090408ERD41Series XDPT
$21.36List $26.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 6010729 is a XDPT090408ERD41 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT090408ERD41
Chip breakerD41
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleXDPT
Iso codeXDPT090408ERD41
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDPT090408ERD41
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2950
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
