Kennametal

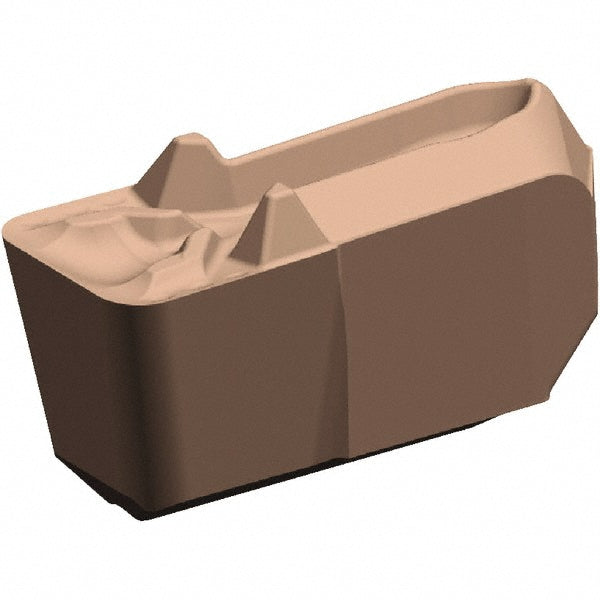

Carbide Insert, Grade KCU10, AlTiN - Kennametal 6012705
MFR# 6012705Series Beyond Evolution
$29.81List $36.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6012705 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.2000
Cutting width0.2360
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleEG-P
Insert thickness0.2000
Manufacturer gradeKCU10
Maximum depth of cut0.1530
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall length0.572
Overall width0.236
RakePositive
Rake angle27
