Kennametal

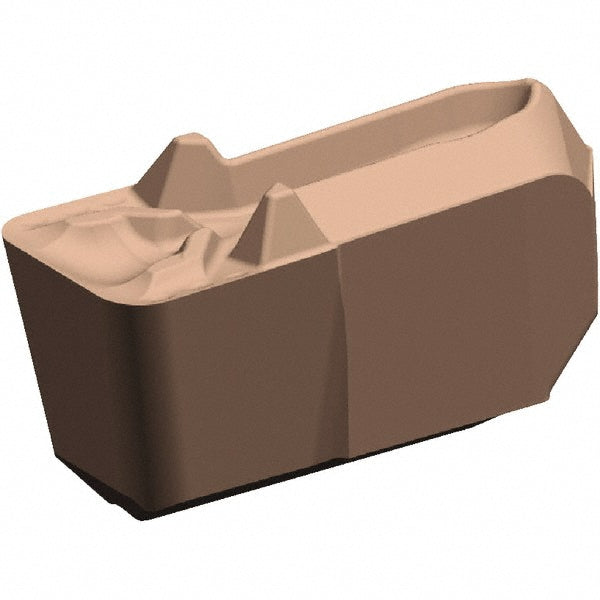

Carbide Insert, Grade KCU10, AlTiN - Kennametal 6012710
MFR# 6012710Series Beyond Evolution
$26.54List $31.83
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6012710 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1280
Cutting width0.0940
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size2
Insert styleEG-P
Insert thickness0.1280
Manufacturer gradeKCU10
Maximum depth of cut0.0680
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.35
Overall width0.094
RakePositive
Rake angle22
