Kennametal

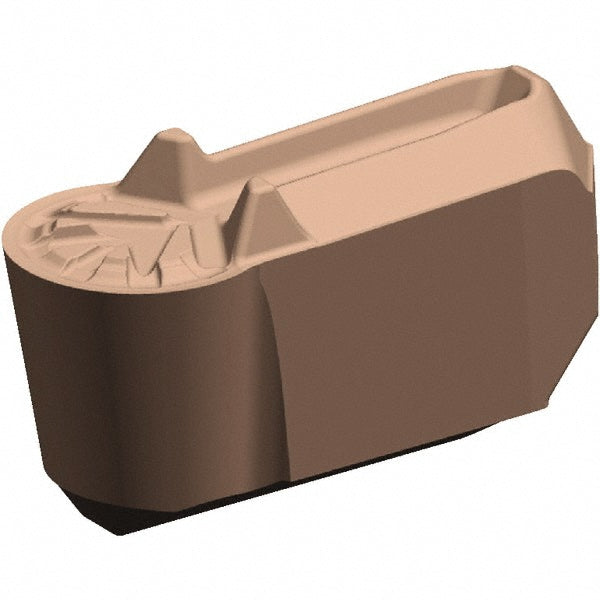

Carbide Insert, Grade KCP10B, TiOCN - Kennametal 6013097
MFR# 6013097Series Beyond Evolution
$21.05List $25.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP10B
MaterialCarbide
CoatingTiOCN
Description
The Kennametal 6013097 is a carbide indexable insert, grade KCP10B, TiOCN coated.
Specifications
Chip breakerGUP
Coating finishTiOCN
Coating processCVD
Corner radius0.0650
Cutting height0.1580
Cutting width0.1300
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size3
Insert styleER-U
Insert thickness0.1580
Lead angle2
Manufacturer gradeKCP10B
Maximum depth of cut0.0910
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.378
Overall width0.13
RakePositive
Rake angle10
