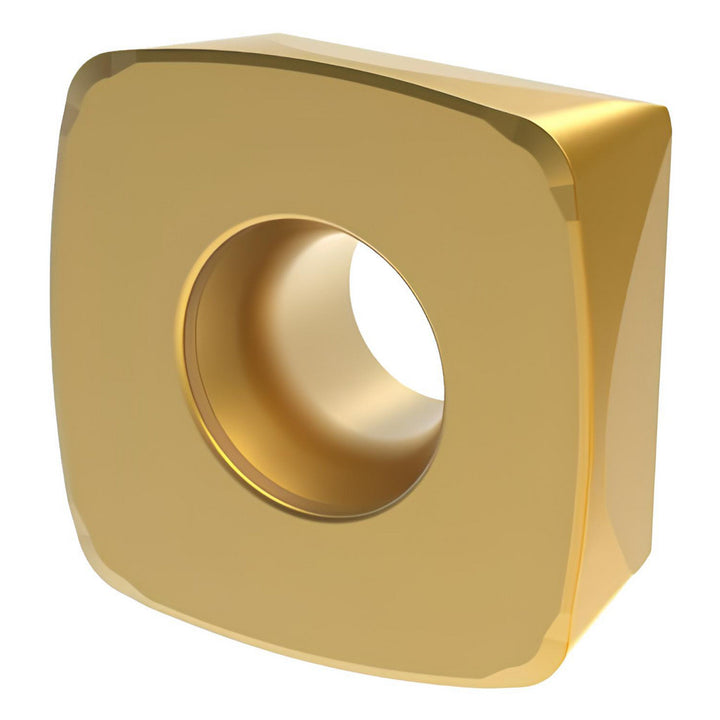

XDPW120515SRD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 6033255

Kennametal

XDPW120515SRD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 6033255

MFR# 6033255ISO/ANSI# XDPW120515SRDCat# XDPW120515SRDSeries XDPW

$32.10List $38.49 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 6033255 is a XDPW120515SRD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeXDPW120515SRD
Chip breakerD
Coating finishTiN
Coating processCVD
Corner radius0.0580
Cutter series compatibility7792VXD12
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120515
Insert styleXDPW
Iso codeXDPW120515SRD
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPW120515SRD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle9.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
