Kennametal

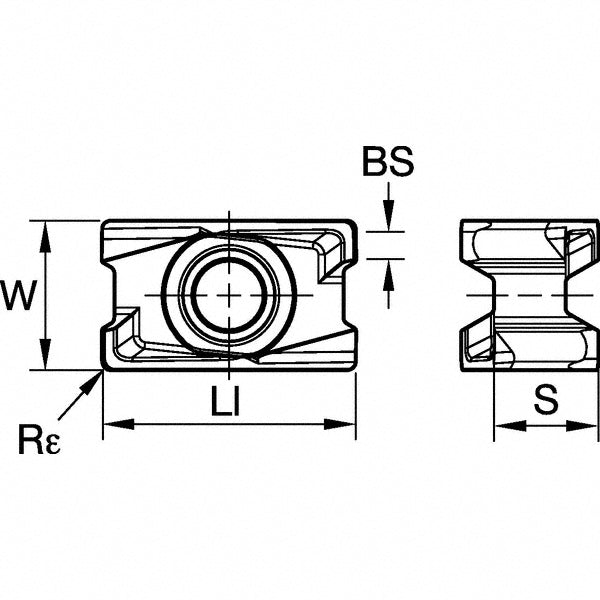

LNGU15T608SRGEH Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6044824
MFR# 6044824ISO/ANSI# LNGU15T608SRGEHCat# LNGU15T608SRGEHSeries LNGU
$34.39List $41.24
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6044824 is a LNGU15T608SRGEH solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU542SRGEH
Chip breakerGEH
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Hole diameter0.1772
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code542
Insert styleLNGU
Iso codeLNGU15T608SRGEH
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T608SRGEH
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
