Kennametal

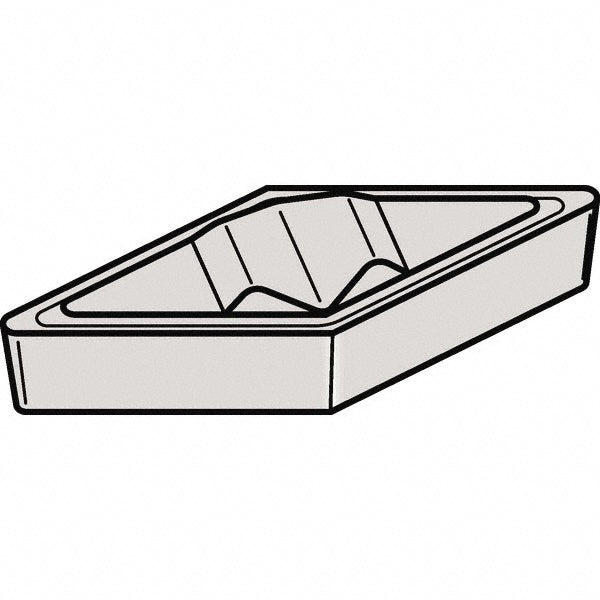

VCGR160408 Carbide Insert, Grade KCP25B, TiCN - Kennametal 6083097
MFR# 6083097ISO/ANSI# VCGR160408Series Top Not
$32.46List $38.94
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 6083097 is a VCGR160408 carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiCN
Coating processCVD
Corner radius0.0312
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert size code332
Insert styleVPGR
Iso codeVCGR160408
Manufacturer gradeKCP25B
Material gradeP25; P35; K30; K40
Maximum depth of cut0.2180
Msc manufacturer numberVPGR332
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle8
ShapeParallelogram
Side length0.6540
StandardsVPGR332; VCGR160408
Thickness in3/16
Width in3/8
