1/2" 6-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6113105

Kennametal

1/2" 6-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6113105

MFR# 6113105Cat# UJBE0500J6ZBSeries HARVI III UJBE

$269.16List $339.21 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

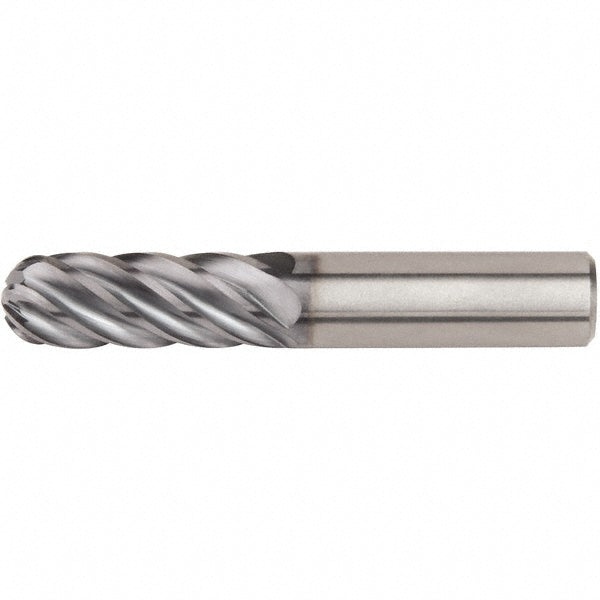

The Kennametal 6113105 is a 1/2 6-flute Solid Carbide (KCSM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 1-1/2 length of cut, 3-1/2 overall length. Series HARVI III UJBE.

Specifications

Additional informationVersatile Solid Carbide End Mill for Stainless Steel, & High-Temperature Alloys. Harvi III Aero Solid Carbide End Mills Cover a Variety of Operations. Harvi III Aero Solid Carbide End Mills Feature Unequal Flute Spacing for Chatter-Free Machining At Hig
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleMedium
Length of cut in1-1/2
Length typeStandard
Manufacturers catalog numberUJBE0500J6ZB
Material gradeKCSM15
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes6
Overall length in3-1/2
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials
Reach length1.5000
Shank diameter in1/2
Shank diameter tolerance+0.0000/-0.0043 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
