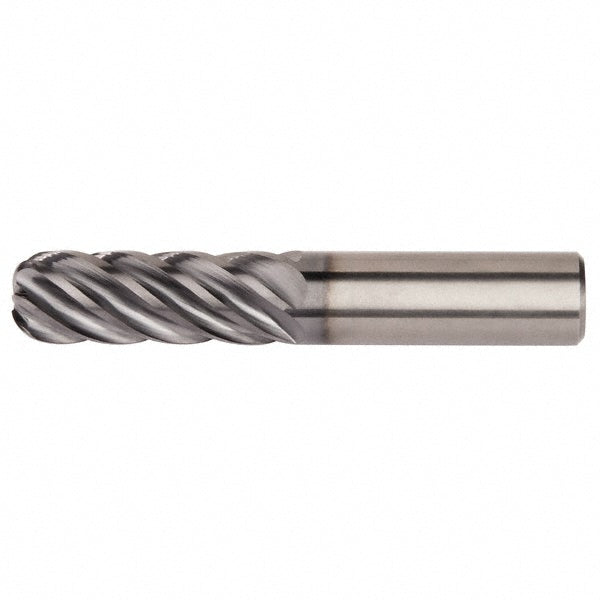

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6113136

Kennametal

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6113136

MFR# 6113136Series UJDE

$297.16List $374.49 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6113136 is a 1/2 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 2-1/2 length of cut, 4-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in2-1/2
Length typeExtra Long
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeFinishing
Mill diameter in1/2
Number of flutes6
Overall length in4-1/2
PitchClose
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
