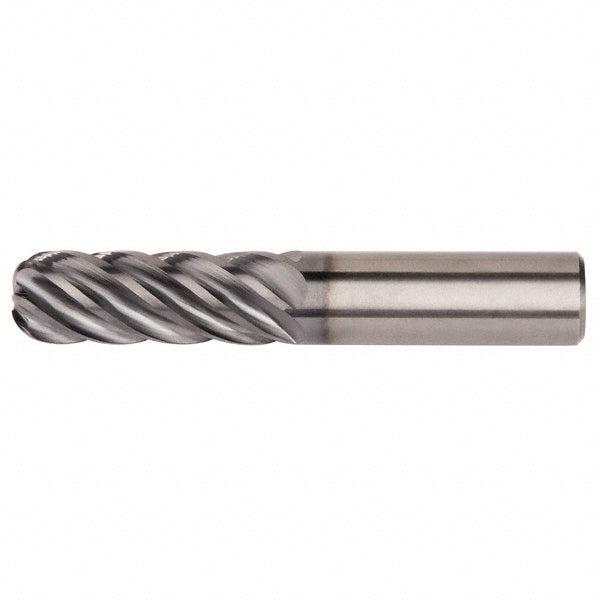

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6113208

Kennametal

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6113208

MFR# 6113208Series UJDE

$664.52List $852.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6113208 is a 3/4 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 2 length of cut, 4-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A
Helix styleHigh
Length of cut in2
Length typeStandard
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeFinishing
Mill diameter in3/4
Number of flutes6
Overall length in4-1/2
PitchClose
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
