Kennametal

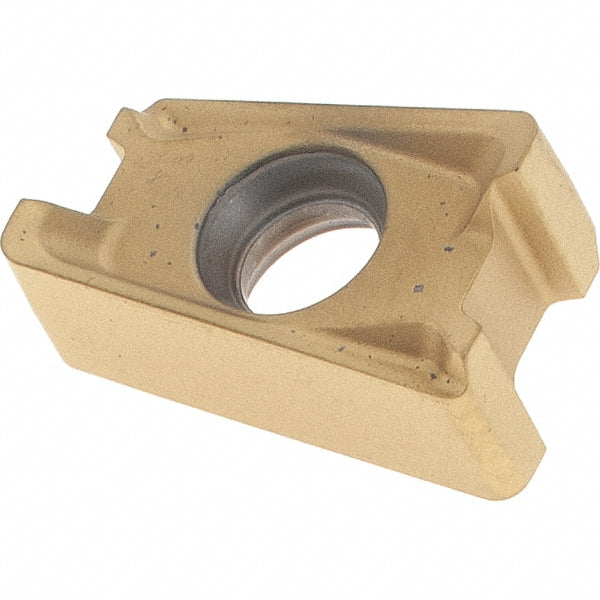

LNGU110408ERGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 6131541
MFR# 6131541ISO/ANSI# LNGU110408ERGECat# LNGU110408ERGESeries LNGU
$32.87List $40.13
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6131541 is a LNGU110408ERGE solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU432ERGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-11
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code432
Insert styleLNGU
Iso codeLNGU110408ERGE
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNGU110408ERGE
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
